ASTM E505 ADJUNCT

检测压模铝铸件和镁铸件的参考射线底片

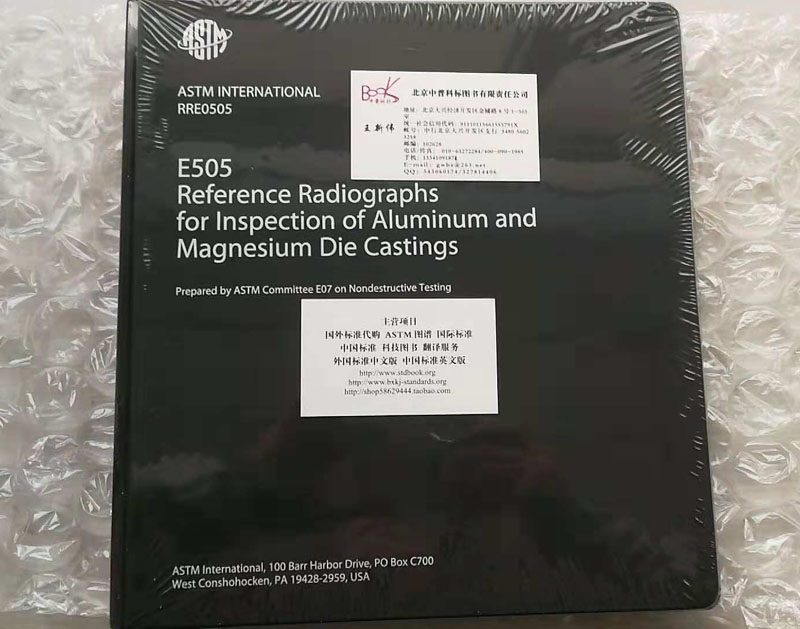

RRE0505 Reference Radiographs for E505 Inspection of Aluminum and Magnesium Die Castings + Active Standard

Reference Radiographs are nondestructive testing standards universally accepted because of their high reliability in accept-reject actions.

These reference radiographs illustrate the categories and severity levels of discontinuities that may occur in aluminum-alloy and magnesium-alloy die castings. They are intended to provide:

• A guide enabling recognition of discontinuities and their differentiation both as to type and severity level through radiographic examination.

• Example radiographic illustrations of discontinuities and a nomenclature for reference in acceptance standards, specifications, and drawings.

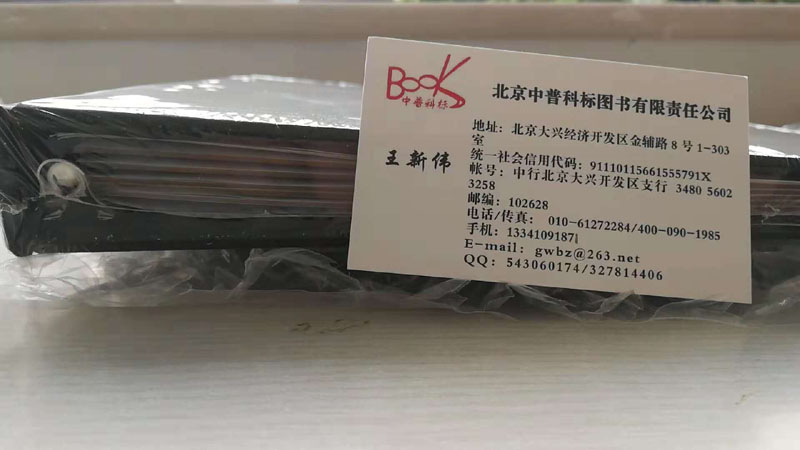

The set of reference radiographs consists of five 8-1/2 by 11 in. cardboard frames containing radiographs covering discontinuities in aluminum and magnesium alloy die-castings. The first four frames each contain two sets of four graded levels of increasing severity, while the last frame contains two ungraded radiographs. The five frames are contained in a 10-1/2 by 11-1/2 in. ring binder.

A copy of the current ASTM standard is included with the purchase of these reference radiographs.

Note: E505 reference radiographs are available as digital reference images with the designation E2973.
